Explore Container Images

Containers on CVMFS

There are a few singularity containers accessible by keyword slc5, slc6, centos6 and centos7 through command setupATLAS -c. There are many other images available under /cvmfs/unpacked.cern.ch/. If this CVMFS path is not visible, please add this mount point to the CVMFS client on your computer.

lxplus$ ls /cvmfs/unpacked.cern.ch/
gitlab-registry.cern.ch  logDir  registry.hub.docker.com

lxplus$ ls /cvmfs/unpacked.cern.ch/registry.hub.docker.com/
atlas        atlasml   cmssw      jodafons  lofaruser      siscia
atlasadc     atlrpv1l  danikam    kratsg    lukasheinrich  stfc
atlasamglab  clelange  engineren  library   pyhf           sweber613

lxplus$ ls /cvmfs/unpacked.cern.ch/registry.hub.docker.com/atlasml
atlasml-base:latest    ml-base:centos           ml-base:py-3.6.8
atlasml-base:py-3.6.8  ml-base:centos-py-3.6.8  ml-base:py-3.7.2
atlasml-base:py-3.7.2  ml-base:centos-py-3.7.2

The containers under /cvmfs/unpacked.cern.ch/registry.hub.docker.com/atlasml/ are for machine learning. For Atlas release containers, they are under /cvmfs/unpacked.cern.ch/registry.hub.docker.com/atlas/

lxplus$ ls /cvmfs/unpacked.cern.ch/registry.hub.docker.com/atlas
analysisbase:21.2.10            athanalysis:21.2.102
analysisbase:21.2.100           athanalysis:21.2.10-20171115
[...]
analysisbase:21.2.16            athanalysis:21.2.19
analysisbase:21.2.16-20180129   athanalysis:21.2.19-20180221
analysisbase:21.2.17            athena:21.0.15
analysisbase:21.2.17-20180206   athena:21.0.15_100.0.2
analysisbase:21.2.18            athena:21.0.15_31.8.1
analysisbase:21.2.18-20180213   athena:21.0.15_DBRelease-100.0.2_Patched
analysisbase:21.2.19            athena:21.0.23
analysisbase:21.2.19-20180221   athena:21.0.23_DBRelease-200.0.1
analysisbase:21.2.60            athena:21.0.31
analysisbase:21.2.88            athena:21.0.31_100.0.2
athanalysis:21.2.10             athena:21.0.31_31.8.1
athanalysis:21.2.100            athena:22.0.5_2019-09-24T2128_100.0.2
athanalysis:21.2.100-20191127   athena:22.0.6_2019-10-04T2129
athanalysis:21.2.101            athena:22.0.9
athanalysis:21.2.101-20191208

Let us take an example of release AthAnalysis,2.2.115 under /cvmfs/unpacked.cern.ch/registry.hub.docker.com/atlas/

lxplus$ singularity exec -c /cvmfs/unpacked.cern.ch/registry.hub.docker.com/atlas/athanalysis:21.2.115/release_setup.sh bash
singularity exec -c /cvmfs/unpacked.cern.ch/registry.hub.docker.com/atlas/athanalysis:21.2.115 bash
Singularity> ls /home/atlas
release_setup.sh
Singularity> source /home/atlas/release_setup.sh
Configured GCC from: /opt/lcg/gcc/8.3.0-cebb0/x86_64-centos7/bin/gcc
Taking LCG releases from: /opt/lcg
Taking Gaudi from: /usr/GAUDI/21.2.115/InstallArea/x86_64-centos7-gcc8-opt
Configured AthAnalysis from: /usr/AthAnalysis/21.2.115/InstallArea/x86_64-centos7-gcc8-opt
[bash][yesw AthAnalysis-21.2.115]:~ >

That is, start the wanted container, then source /home/atlas/release_setup.sh.

Containers on Docker Hub

The Docker hub hosts the largest container images. You can input keyword to search on the hub. For example, you can put a keyword "atlas/" under the search field as shown below:

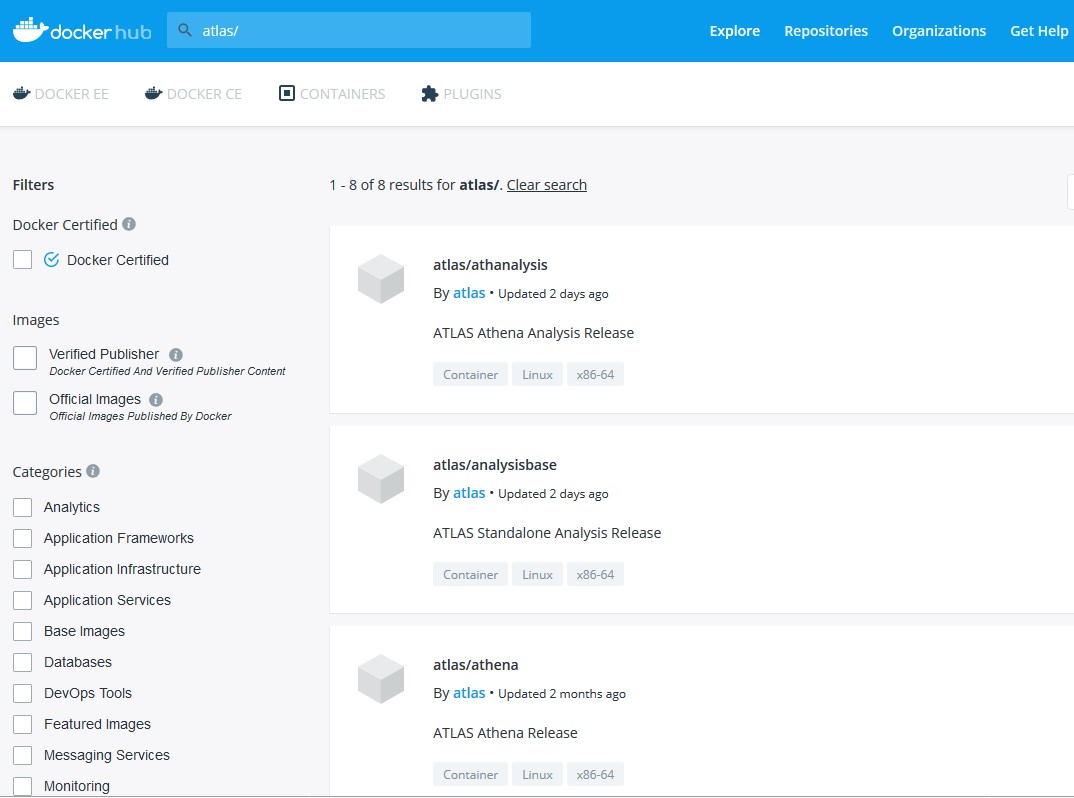

  • A screenshot of searching for "Atlas/" on the Docker Hub:

Click on the found container, it will provides the pull command instruction and sometimes also a brief description.

Containers on Singularity Hub and Library

There are many container images on the Singularity Hub and Library.

  • Singularity Hub: https://singularity-hub.org/. Click "Collections" on the top menu to search by Label, Tag or App name.
  • Singularity Library: https://cloud.sylabs.io/library. It is not supported in Singularity version 2. Put keyword in the search field on the very top to search for your wanted container.
